| 主板 |
ISB 1110 Support Intel® Atom™ E620 series processor Intel® EG20T chipset |
| 內(nèi)存 |
On-board 512MB DDR2 800 memory |
| LAN特點 |
LAN Chip: Intel® 82574L Support 10/ 100/ 1000 link speed |
| 擴展 |
1 x Mini-PCIe Slot |
| 前置I/O界面 |

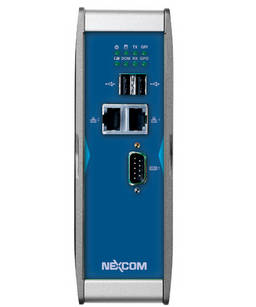

2 x USB ports 2 x RJ45 GbE LAN ports 1 x DB9 Serial port Power/ HDD/ GPIO/ LEDs |
| 后置I/O界面 |
1 x DB15 VGA port 1 x DB15 male connector for 8CH General Purpose Input 1 x DB15 male connector for 8CH General Purpose Output 3-pin DC input, support 12V DC input and 24V DC input 1 x Power on/ off switch |
| 設備 |
1 x SATA-DOM device space (Default) 1 x SATA 2.5” SSD space(Optional) |
| 尺寸 |
Chassis Dimension: 59mm x 140mm x167mm |
| 運行環(huán)境 |
Operating temperature:
Ambient with air flow: -5°C ~ 55°C
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 10% ~ 93% (non-condensing) Shock protection: 20G, half sine, 11ms, IEC60068-2-27 Vibration protection
Random: 0.3Grms @5~500 Hz according to IEC68-2-64
Sinusoidal: 0.3Grms @5~500 Hz according to IEC68-2-6 |
